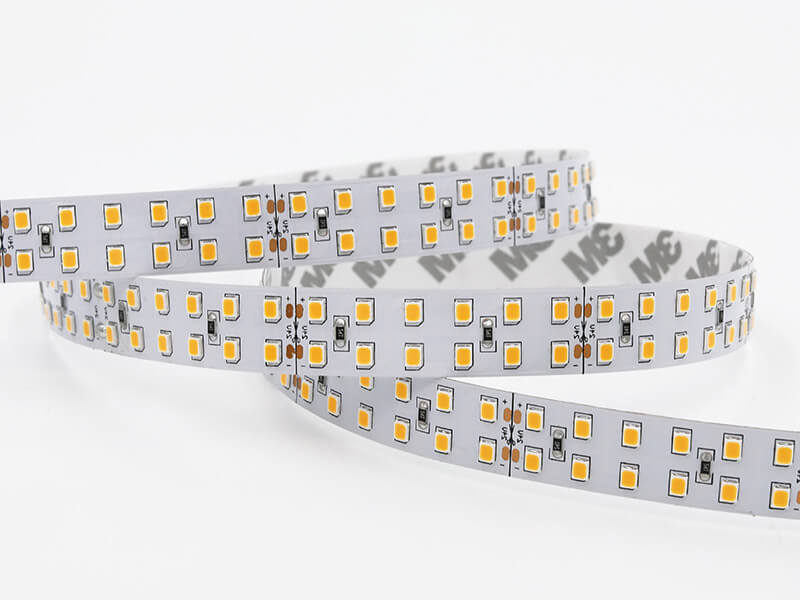

LD2835H-240D Wide PCB LED Strip

  • 0.24W Per 2835 LED
  • 240 LEDs/M
  • 15mm PCB Width, Dual Row
  • Power – 29 W/M
  • >90 CRI
  • 2000 ~ 7000K CCT
  • Up to 50000hours Lifespan

led strip light 5 SDCM 5 YEARS WARRANTY DIMMABLE UL CERTIFICATE CE CERTIFICATE ONE BIN ONLY

Specifications:

Item No.: LD-2835H-24-240D15-29P0-W





  • IP Lever Available:   IP 20 no waterproof led tape IP62 silicone glue led tape IP65 silicone sleeve led tape
Light Efficacy :

100 LM/W(+/-10%)

Voltage :

24V

Cutting Interval :

50mm

Lumens :

2550-2680 LM/M(+/-10%)

Work Temperature:

-25°C ~ 45°C

Myledy IP Grade Introduction:

IP is an acronym “Ingress Protection”, a measurement standard ratings used to indicate the level of protection for electrical equipment against solids and liquids.

Myledy is equipped with state of the art manufacturing equipment utilizing cutting edge technology and top quality silicone glue to offer anti-yellowing, resistance to high and low temperature and diverse IP rating lever IP62~IP68 waterproofing for special applications.

IP20
Non-Waterproof

IP20 without waterproof

IP62
Silicon Glue

IP62 silicon glue

IP65
Silicon Sleeve

IP65 silicon sleeve

IP66
Silicon Extrusion

IP67
Silicon Glue with
Half Sleeve

IP68
Silicon Glue With
Full Sleeve

IP68 Silicon glue+silicon case

Regular Wiring Method:

First, Calculate The Wattage of Each LED Strip — You should already have an idea of how much power will be required to run your LED light tapes. However, there might be some additions or subtractions in the number after you’ve cut and connected the tapes together. So, calculate the overall wattage required to power your flexible LED light strips again.

Second, Find Compatible Power Supply — You need to choose a driver that will use only 80% of its overall power to run the LED tapes. This is very important for the longevity of both your power supply and LED strips.

Third, Connect LED Strip to Power Supply — You can make series circuit or parallel circuit for the LED strip lights. And all Myledy LED strip lights are dimmable, you can also connect a dimmer for better brightness control.

With A Dimmer
LED Strips Parallel Circuit
