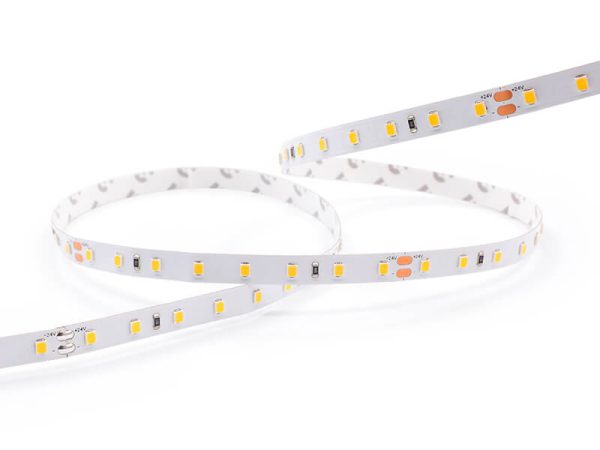

High Efficiency LED Strip Lights

  • ErP Qualified, up to ErP energy class C
  • Up to 145-165 lm/w high efficiency
  • 8 LEDs per Interval
  • DC 24V Voltage, low-voltage drop
  • High color consistency, < 3 SDCM
  • CCT 2000K~6500K, >90 CRI
  • Up to 50000hours Lifespan
  • 5 years warranty

Specifications:

Myledy high-efficiency LED strip lights are designed to provide maximum brightness while minimizing energy consumption. They typically use large-size qualified chips, high-quality resistors, and thicker PCB then encapsulated in a thermally efficient 2835 SMD. This enables them to produce a high amount of light while using less power and widely used in various lighting scenes.

UP TO 165 LM/W

In order to meet the different requirements of customers, we have developed multi different high-efficiency LED strips lights as options, among which the 125~140LM/W and 145-165LM/W series are the most popular.

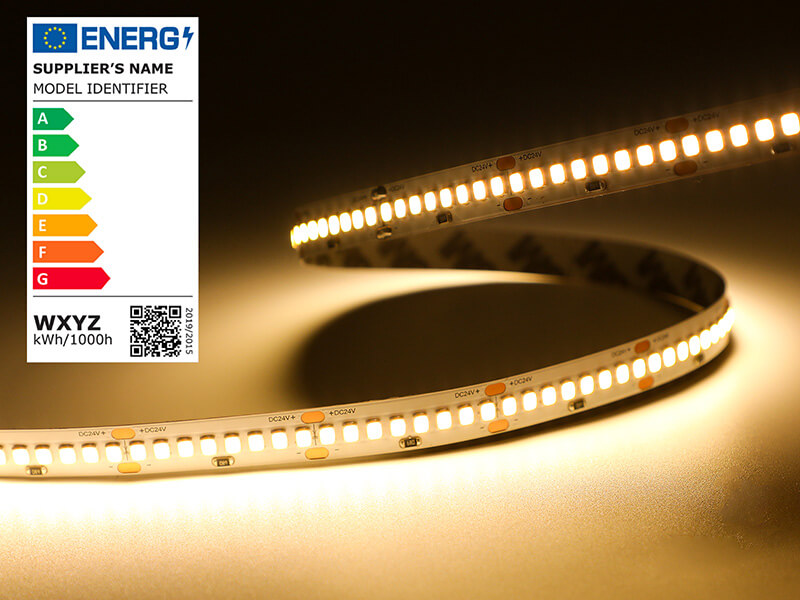

Up to ErP Energy Efficiency Class C

Our high-efficiency LED strip lights also satisfy the ErP energy directive of Europe, their long lifespan, durability, high color consistency, and flexibility make them ideal for a variety of applications, including residential, commercial, and industrial settings.

High Brightness, High Energy Efficiency, High Price Competitiveness

This improvement in high-efficiency technology brings us more energy-efficient light strips without any corresponding cost increase. Instead, it makes our light strips more competitive in the market. Here are several density choices for bulk requirement: 64leds/m,  80leds/m,  128leds/m160leds/m,  240leds/m

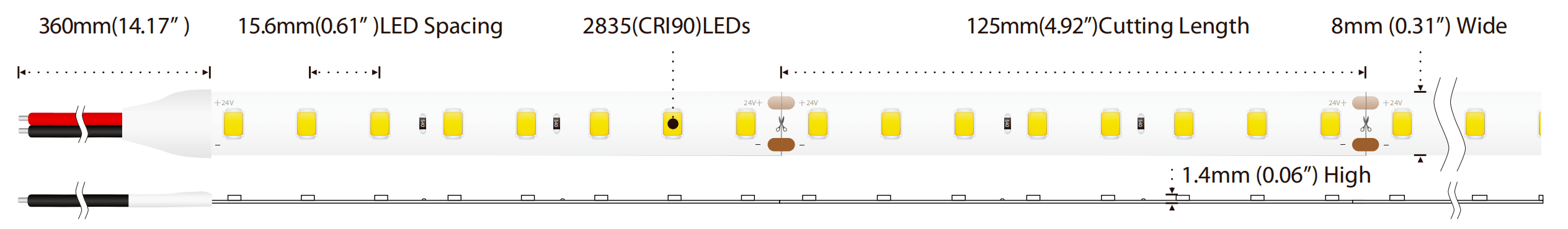

  • Dimension

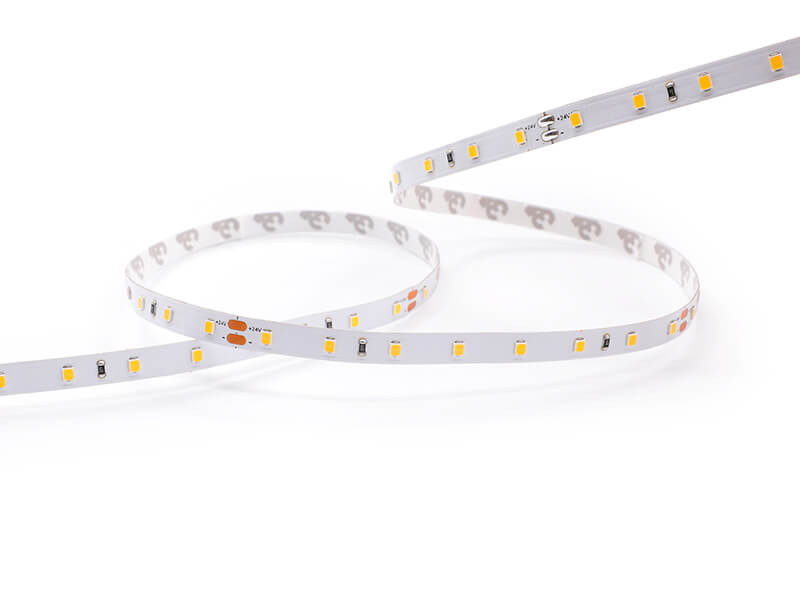

Item: LD-2835H-24-64S08-05P0-W

  • LED Qty: 64 LEDs/M
  • Voltage: 24V DC
  • Light efficacy: 127-139 lm/w
  • Power: 4.8W/M
  • Lumen: 610-670 LM/M
  • PCB Width: 8mm
  • Color: 2000K – 6500K
  • CRI: >90
  • Waterproof: IP20/ IP62/IP66/IP67/IP68

Item: LD-2835G-24-64S08-05P0-W

  • LED Qty: 64 LEDs/M
  • Voltage: 24V DC
  • Light efficacy: 145-165 lm/w
  • Power: 4.8W/M
  • Lumen: 700-795 LM/M
  • PCB Width: 8mm
  • Color: 2000K – 6500K
  • CRI: >90
  • Waterproof: IP20/ IP62/IP66/IP67/IP68

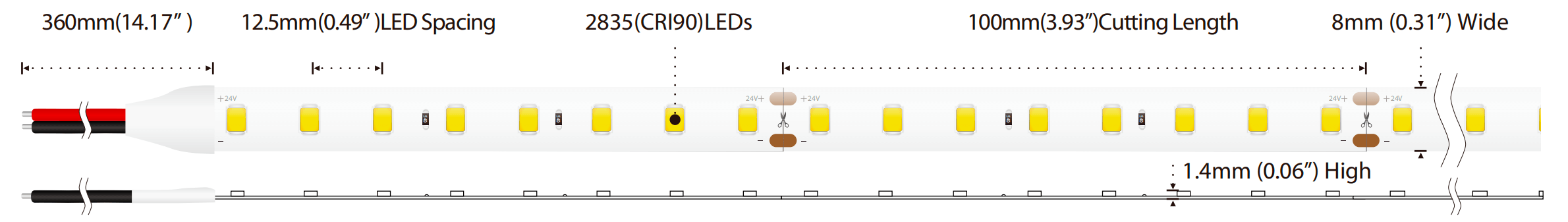

  • Dimension

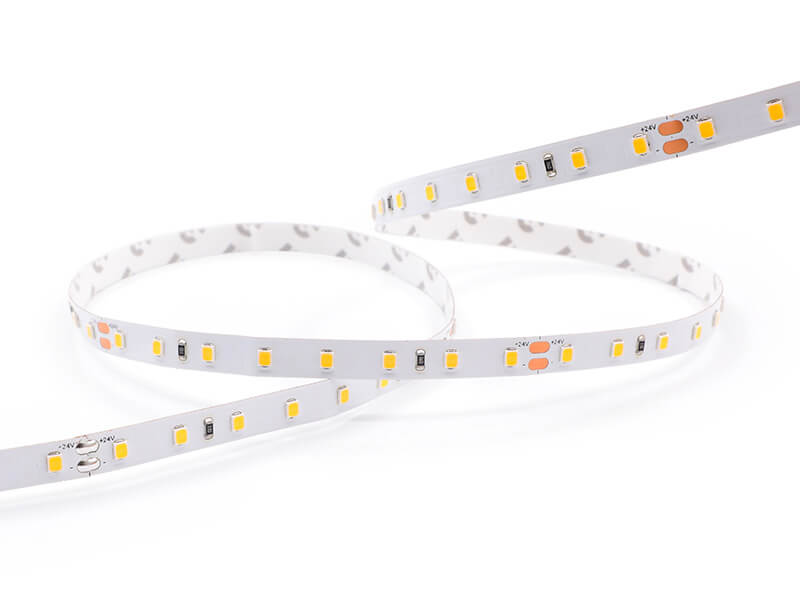

Item: LD-2835H-24-80S08-09P0-W

  • LED Qty: 80 LEDs/M
  • Voltage: 24V DC
  • Light efficacy: 126-138 lm/w
  • Power: 9.6W/M
  • Lumen: 1210–1325 LM/M
  • PCB Width: 8mm
  • Color: 2000K – 6500K
  • CRI: >90
  • Waterproof: IP20/ IP62/IP66/IP67/IP68

Item: LD-2835G-24-80S08-09P0-W

  • LED Qty: 80 LEDs/M
  • Voltage: 24V DC
  • Light efficacy: 140-165 lm/w
  • Power: 9.6W/M
  • Lumen: 1345-1585 LM/M
  • PCB Width: 8mm
  • Color: 2000K – 6500K
  • CRI: >90
  • Waterproof: IP20/ IP62/IP66/IP67/IP68

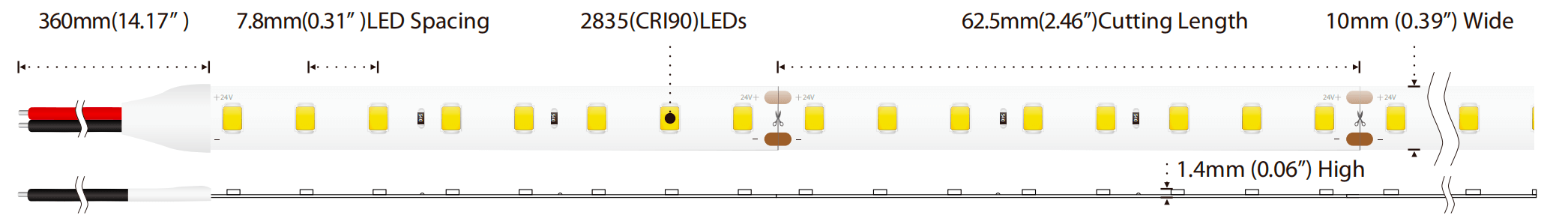

  • Dimension

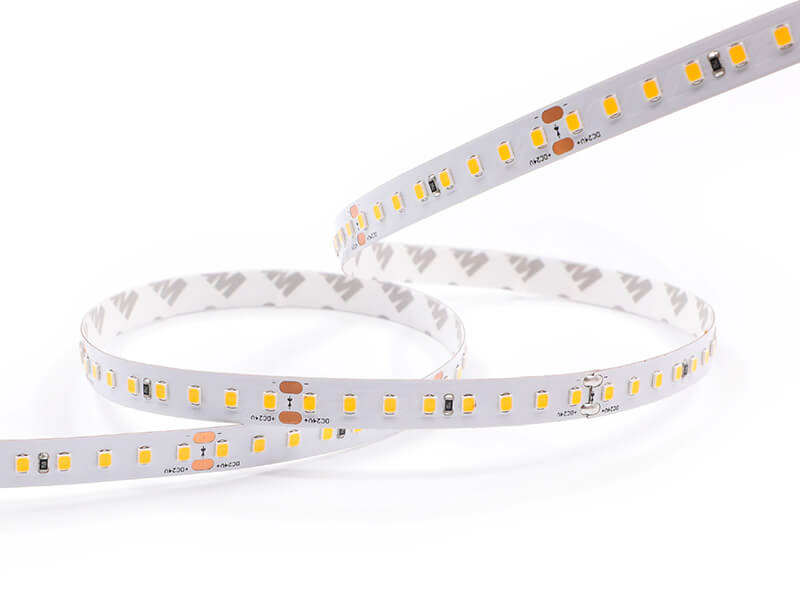

Item: LD-2835H-24-128S10-09P0-W

  • LED Qty: 128 LEDs/M
  • Voltage: 24V DC
  • Light efficacy: 126-139 lm/w
  • Power: 9.6W/M
  • Lumen: 1210–1335 LM/M
  • PCB Width: 10 mm
  • Color: 2000K – 6500K
  • CRI: >90
  • Waterproof: IP20/ IP62/IP66/IP67/IP68

Item: LD-2835G-24-128S10-14P0-W

  • LED Qty: 128 LEDs/M
  • Voltage: 24V DC
  • Light efficacy: 145-165 lm/w
  • Power: 14.4W/M
  • Lumen: 2090-2380 LM/M
  • PCB Width: 10 mm
  • Color: 2000K – 6500K
  • CRI: >90
  • Waterproof: IP20/ IP62/IP66/IP67/IP610
  • Dimension

Item: LD-2835H-24-160S10-14P0-W

  • LED Qty: 160 LEDs/M
  • Voltage: 24V DC
  • Light efficacy: 126-139 lm/w
  • Power: 14.4W/M
  • Lumen: 1815-2000 LM/M
  • PCB Width: 10mm
  • Color: 2000K – 6500K
  • CRI: >90
  • Waterproof: IP20/ IP62/IP66/IP67/IP68

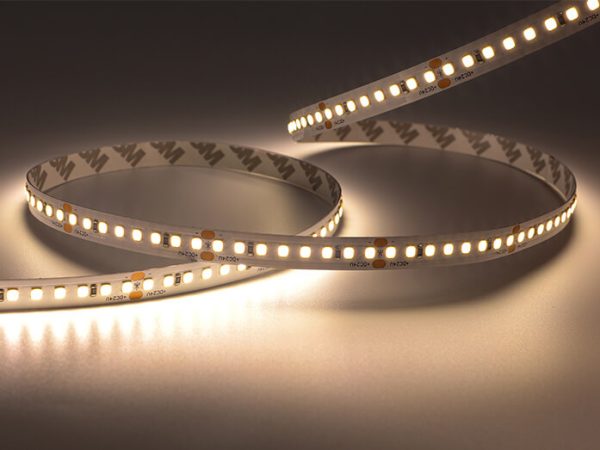

Item: LD-2835G-24-160S10-19P0-W

  • LED Qty: 160 LEDs/M
  • Voltage: 24V DC
  • Light efficacy: 140-165 lm/w
  • Power: 19.2W/M
  • Lumen: 2670-3170 LM/M
  • PCB Width: 10mm
  • Color: 2000K – 6500K
  • CRI: >90
  • Waterproof: IP20/ IP62/IP66/IP67/IP68

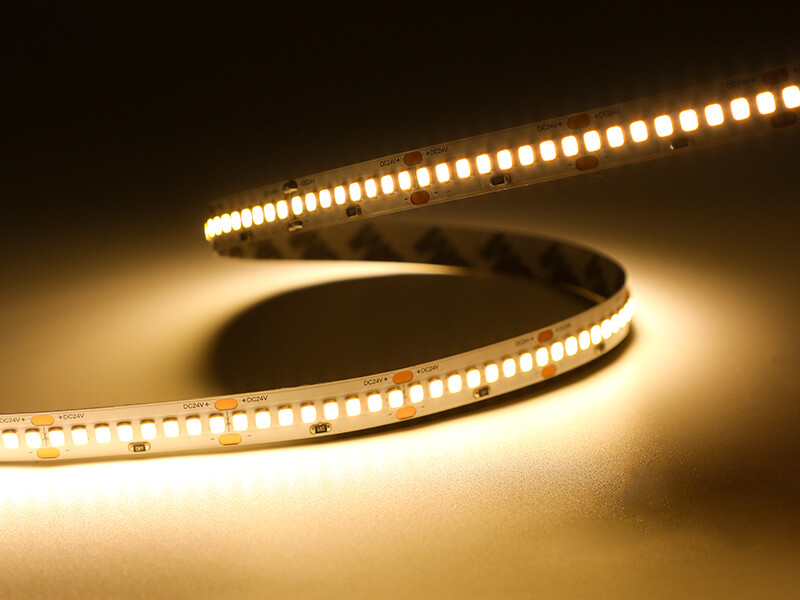

Item: LD-2835H-24-240S10-15P0-W

  • LED Qty: 240 LEDs/M
  • PCB Width: 10mm
  • Cutting length: 33.3mm
  • Light Efficacy: 126-139 lm/w
  • Power: 15W/M
  • Lumen: 1845-1920 LM/M
  • Voltage: 24V DC
  • Color: 2000K – 6500K, >90 CRI
  • Waterproof: IP20/ IP62/IP66/IP67/IP68

Myledy IP Grade Introduction:

IP is an acronym “Ingress Protection”, a measurement standard ratings used to indicate the level of protection for electrical equipment against solids and liquids.

Myledy is equipped with state of the art manufacturing equipment utilizing cutting edge technology and top quality silicone glue to offer anti-yellowing, resistance to high and low temperature and diverse IP rating lever IP62~IP68 waterproofing for special applications.

IP20
Non-Waterproof

IP20 without waterproof

IP62
Silicon Glue

IP62 silicon glue

IP65
Silicon Sleeve

IP65 silicon sleeve

IP66
Silicon Extrusion

IP67
Silicon Glue with
Half Sleeve

IP68
Silicon Glue With
Full Sleeve

IP68 Silicon glue+silicon case

Regular Wiring Method:

First, Calculate The Wattage of Each LED Strip — You should already have an idea of how much power will be required to run your LED light tapes. However, there might be some additions or subtractions in the number after you’ve cut and connected the tapes together. So, calculate the overall wattage required to power your flexible LED light strips again.

Second, Find Compatible Power Supply — You need to choose a driver that will use only 80% of its overall power to run the LED tapes. This is very important for the longevity of both your power supply and LED strips.

Third, Connect LED Strip to Power Supply — You can make series circuit or parallel circuit for the LED strip lights. And all Myledy LED strip lights are dimmable, you can also connect a dimmer for better brightness control.

With A Dimmer
LED Strips Parallel Circuit
