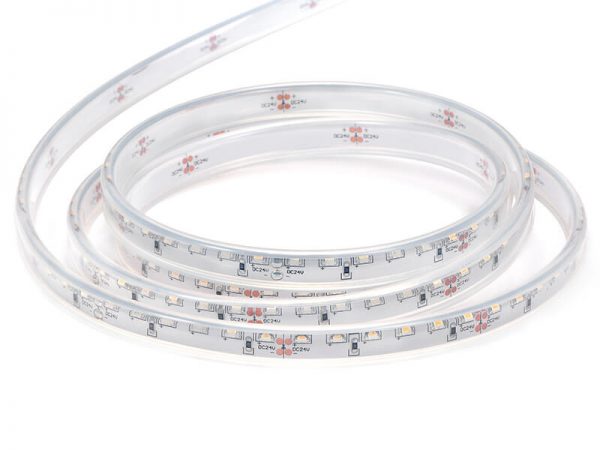

LD315 Side Emitting LED Strip

  • Qualified 315 LED
  • 60 / 96 / 120 LEDs/M Optional
  • Side Emitting Lighting
  • >80 CRI
  • 2700 ~ 7000K CCT
  • Up to 50000hours Lifespan

3 SDCM  5 YEARS WARRANTY  DIMMABLE  LM80 TEST UL CERTIFICATE  CE CERTIFICATE  RoHS CERTIFICATE  TUV  LED STRIP ONE BIN ONLY

specifications:

Introduction of 315 SMD LED:

      All Myledy 315 SMDs are made to Side Emitting LED Strip. The side view led strips package the LEDs to the side of the flexible PCB instead of vertically up. It can illuminate objects from the side and is suitable for neon lights and glowing letters. The light can be emitted from the side rather than from the top of the PCB.

Key Features for  Your Selection:

  • Special Side Emitting LED Strip
  • Slim Design
  • >80 CRI(Color Rendering Index)
  • 2700K~7000K Widely CCT range
  • Fully Dimmable
  • Perfect Heat-dissipation to ensure 50000hours Lifespan

Application & Wide Use

These strips are great for outlining your pools, aquariums, or even buildings, giving them an edgy glow on the corners.:

  • Architectural decorative lighting
  • Applicable for automobile, boat and bicycle decoration
  • Advertisement lighting box edge
  • sign lighting
  • Holiday, event, show exhibition decoration

Like every other LED, these LED strips come with adhesive, so all you need to do is fix them in the required position and have fun while decorating your beloved spaces or objects.

Myledy IP Grade Introduction:

IP is an acronym “Ingress Protection”, a measurement standard ratings used to indicate the level of protection for electrical equipment against solids and liquids.

Myledy is equipped with state of the art manufacturing equipment utilizing cutting edge technology and top quality silicone glue to offer anti-yellowing, resistance to high and low temperature and diverse IP rating lever IP62~IP68 waterproofing for special applications.

IP20
Non-Waterproof

IP20 without waterproof

IP62
Silicon Glue

IP62 silicon glue

IP65
Silicon Sleeve

IP65 silicon sleeve

IP66
Silicon Extrusion

IP67
Silicon Glue with
Half Sleeve

IP68
Silicon Glue With
Full Sleeve

IP68 Silicon glue+silicon case

CCT Spectrum Reference:

What Is CCT?
CCT(Correlated Color Temperature at which the light works) is represented by the number and the capital letter K (Kelvin), tells you the hue of white light. The smaller the Kelvin rating, the warmer the light, and vice versa. “Warm” and “Cool” do not describe the working temperature of the light, but rather the effect of light on us.

CCT spectrum

What CCT Should I Choose?
 The color temperature of the LED lighting effects your mood. The amount of white in your room will magnify this effect. If your space has white walls and ceilings, and you choose a warmer white tone, it will look warmer than using a dark color scheme. Conversely, if your room is dim, you may need a cooler white tone so you can see the room clearly.

CCT in one day

Wiring Diagram:

First, Calculate The Wattage of Each LED Strip — You should already have an idea of how much power will be required to run your LED light tapes. However, there might be some additions or subtractions in the number after you’ve cut and connected the tapes together. So, calculate the overall wattage required to power your flexible LED light strips again.

Second, Find Compatible Power Supply — You need to choose a driver that will use only 80% of its overall power to run the LED tapes. This is very important for the longevity of both your power supply and LED strips.

Third, Connect LED Strip to Power Supply — You can make series circuit or parallel circuit for the LED strip lights. And all Myledy LED strip lights are dimmable, you can also connect a dimmer for better brightness control.

With A Dimmer
LED Strips Parallel Circuit

Related Accessories:

Waterproof Power Supply
Power Supply
N20 Led Strip Lights Connector
Connector
Dimmer

For your “done-and-forget” LED lighting projects

What
We can do
for you?

Free Samples

Myledy can provide Free samples of LED strip for customers to better decide what products are needed for his projects.

LOGO Printing

Customized LOGO, date, batch number etc. can be printed on LED strip PCB.

Special Accessories

Relevant cables, connectors, LED profiles, power and other special accessories are available for your projects.

Customized Length & Color

Myledy is proficient in color consistency of led strip lights, we keep one bin and make customized length of LED tape for your projects.

Certificates & Testing Reports

Myledy LED Strip lights have CE, UL, RoHS certificates, and we can profile LM80, IES, Integrating sphere test reports

Prompt Delivery & Economic Freight

7~8 days for regular IP20 LED Strip; 15 days for IP62~IP65 LED tapes. Shipment by sea or air is based on your requirement.
