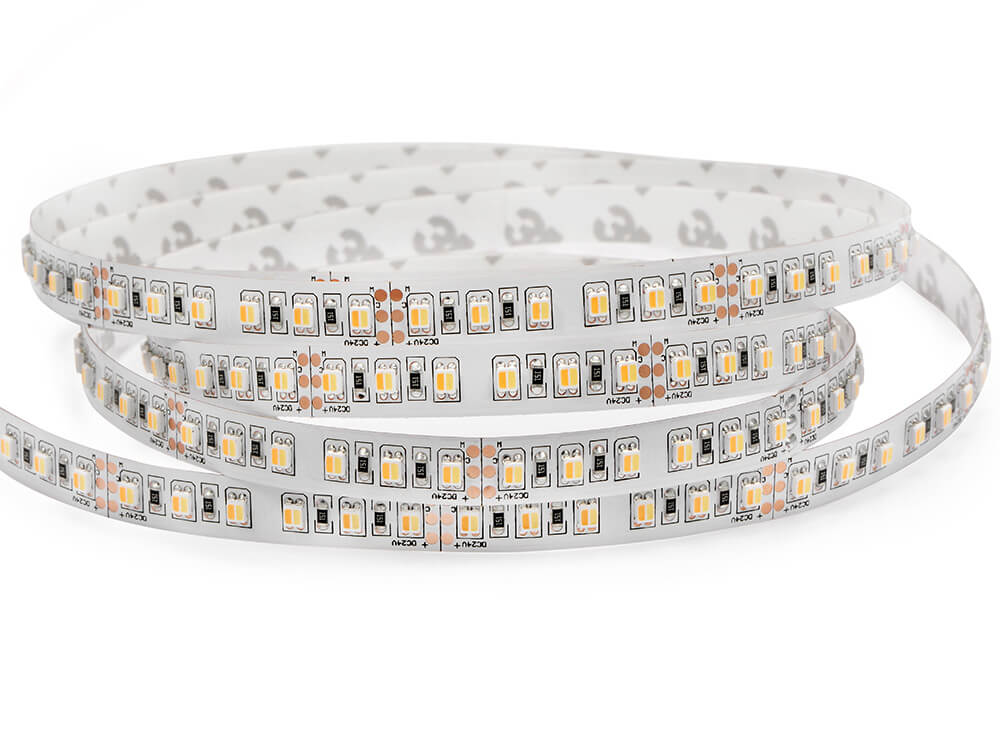

LD3527-120S Dual White LED Strip

  • 3527 SMD
  • 120 LEDs/M, 10mm PCB Width
  • Power – 19.2 W/M
  • >90 CRI
  • 2 in 1 Dual White
  • CCT 2000K~7000K
  • Up to 50000hours Lifespan

led strip light 5 SDCM 5 YEARS WARRANTY DIMMABLE UL CERTIFICATE CE CERTIFICATE ONE BIN ONLY

Specifications:

Item No.: LD-3527-24-120S10-19P0-DW

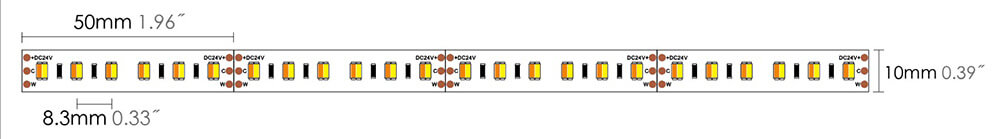

  • Dimension:

Tunable led strip 3527 120S 2in1 dimension



  • Technical Parameters:
LED Type/QTY :

3527 SMD ; 120 LEDs/M

Cutting Interval :

25mm, 50mm

PCB Width :

10 mm

Voltage :

DC 12V, 24V

Power :

19.2 W/M

Lumens :

WW:770 CW:835 LM/M(+/-20%)

Light Color :

White Color – 2400K~7000K

IP Grade Available :

IP20, IP62, IP65, IP67

Standard Length :

5m / reel

Work Temperature:

-25°C ~ 50°C

Myledy IP Grade Introduction:

IP is an acronym “Ingress Protection”, a measurement standard ratings used to indicate the level of protection for electrical equipment against solids and liquids.

Myledy is equipped with state of the art manufacturing equipment utilizing cutting edge technology and top quality silicone glue to offer anti-yellowing, resistance to high and low temperature and diverse IP rating lever IP62~IP68 waterproofing for special applications.

IP20
Non-Waterproof

IP20 without waterproof

IP62
Silicon Glue

IP62 silicon glue

IP65
Silicon Sleeve

IP65 silicon sleeve

IP66
Silicon Extrusion

IP67
Silicon Glue with
Half Sleeve

IP68
Silicon Glue With
Full Sleeve

IP68 Silicon glue+silicon case

Regular Wiring Method:

First, Calculate The Wattage of Each LED Strip — You should already have an idea of how much power will be required to run your LED light tapes. However, there might be some additions or subtractions in the number after you’ve cut and connected the tapes together. So, calculate the overall wattage required to power your flexible LED light strips again.

Second, Find Compatible Power Supply — You need to choose a driver that will use only 80% of its overall power to run the LED tapes. This is very important for the longevity of both your power supply and LED strips.

Third, Connect LED Strip to Power Supply — You can make series circuit or parallel circuit for the LED strip lights. And all Myledy LED strip lights are dimmable, you can also connect a dimmer for better brightness control.

With A Dimmer
LED Strips Parallel Circuit

Related Accessories:

Waterproof Power Supply
Power Supply
Controller
Dimmer
N20 Led Strip Lights Connector
Connector

For your “done-and-forget” LED lighting projects

What
We can do
for you?

Free Samples

Myledy can provide Free samples of LED strip for customers to better decide what products are needed for his projects.

LOGO Printing

Customized LOGO, date, batch number etc. can be printed on LED strip PCB.

Special Accessories

Relevant cables, connectors, LED profiles, power and other special accessories are available for your projects.

Customized Length & Color

Myledy is proficient in color consistency of led strip lights, we keep one bin and make customized length of LED tape for your projects.

Certificates & Testing Reports

Myledy LED Strip lights have CE, UL, RoHS certificates, and we can profile LM80, IES, Integrating sphere test reports

Prompt Delivery & Economic Freight

7~8 days for regular IP20 LED Strip; 15 days for IP62~IP65 LED tapes. Shipment by sea or air is based on your requirement.
