Non-waterproof Driver - Super Slim Series

* Super slim and light rectangular design
* Input voltage: 220 – 240V AC
* Efficiency up to 87%
* PF > 0.95
* No flicker
* 3 years warranty

Technical Details

Input Voltage:

220-240v AC

Output Voltage:

24V

Power Efficacy:

>0.95

Working Temperature:

-20~40 °C

Protection:

Short-circuit/ Over-current protection

Specification of Different Power Supply

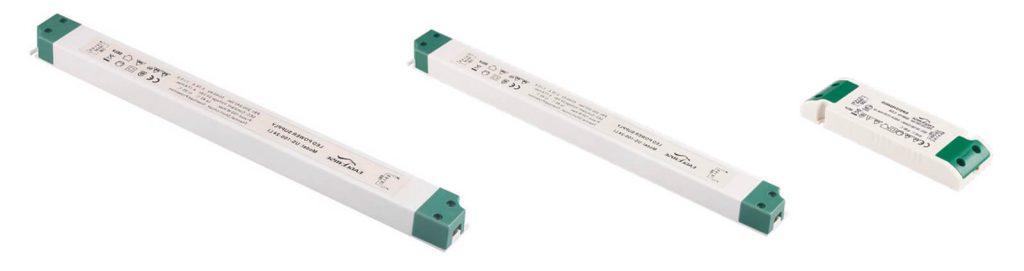

Non-Waterproof Power Supply Super Slim Series
Non-Waterproof Power Supply Super Slim Series



Item No. Power Efficiency Output Current Dimension
LS-15-24 15W 84% 0.62A Max L130*W40*H17mm
LS-30-24 30W 84% 1.25A Max L241*W31*H17mm
LS-60-24 60W 87% 2.5A Max L305*W30*H17mm
LS-100-24 100W 87% 4.17A Max L320*W30*H18mm

For your “done-and-forget” LED lighting projects

What
We can do
for you?

Free Samples

Myledy can provide Free samples of LED strip for customers to better decide what products are needed for his projects.

LOGO Printing

Customized LOGO, date, batch number etc. can be printed on LED strip PCB.

Special Accessories

Relevant cables, connectors, LED profiles, power and other special accessories are available for your projects.

Customized Length & Color

Myledy is proficient in color consistency of led strip lights, we keep one bin and make customized length of LED tape for your projects.

Certificates & Testing Reports

Myledy LED Strip lights have CE, UL, RoHS certificates, and we can profile LM80, IES, Integrating sphere test reports

Prompt Delivery & Economic Freight

7~8 days for regular IP20 LED Strip; 15 days for IP62~IP65 LED tapes. Shipment by sea or air is based on your requirement.
