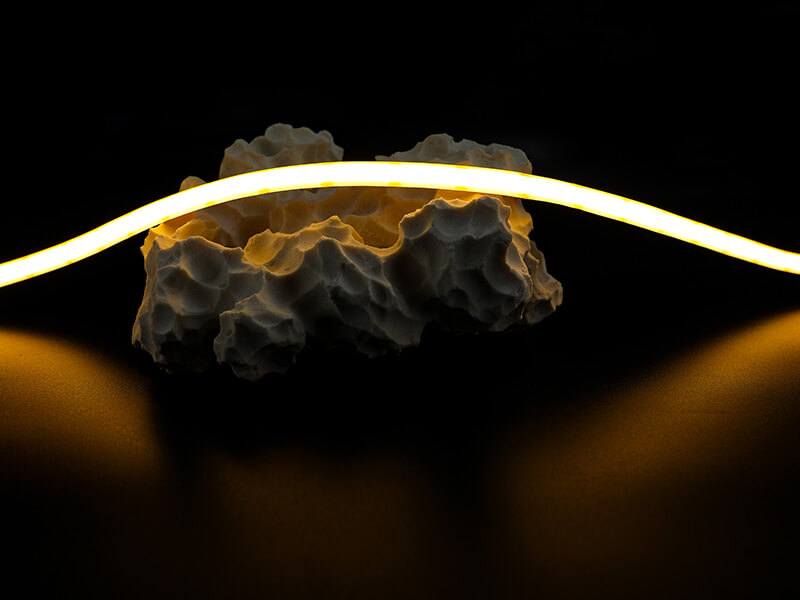

Dot-free LED Strip Lighting

  • Elegant linear light, no spots, high consistency
  • High-qualified 2216 & COB build-in LEDs
  • Natural white, single color, and RGB for selection
  • IP62 / IP67 waterproof lever
  • >90 CRI, <5 SDCM
  • Up to 50000hours Lifespan
  • 5 years warranty

Specifications:

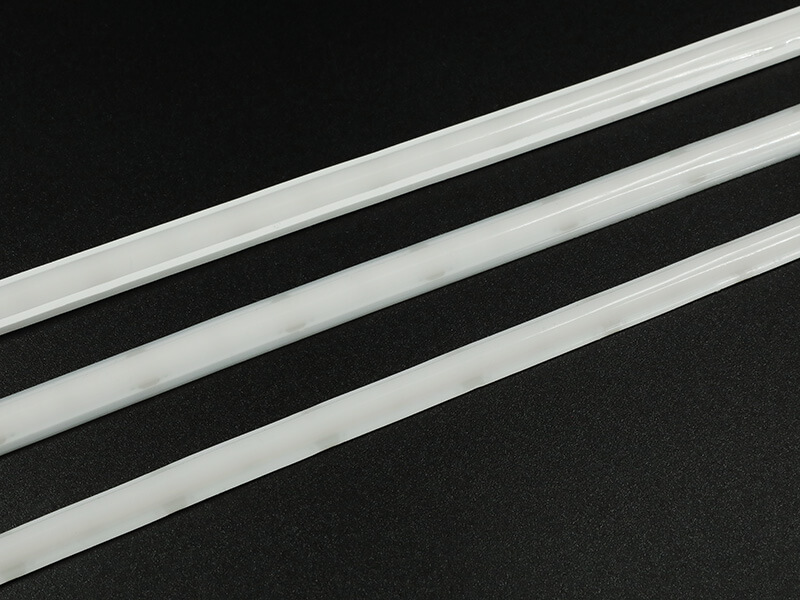

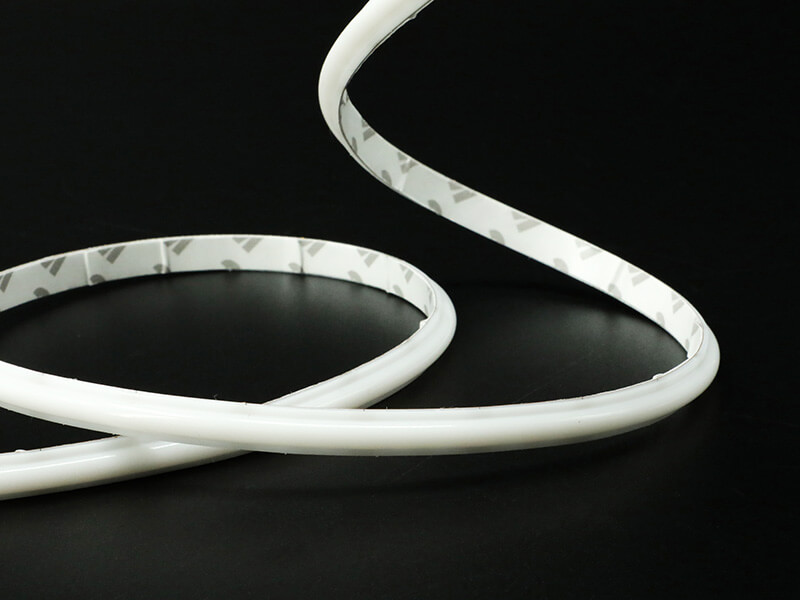

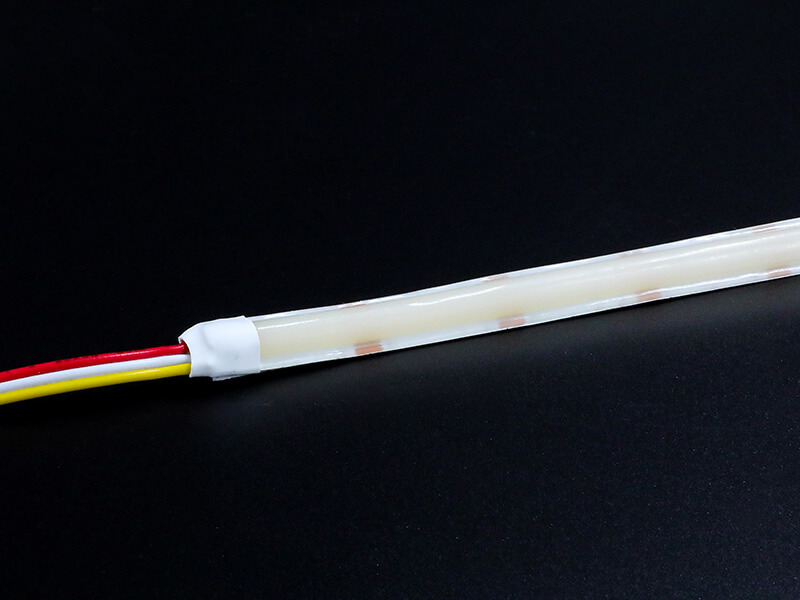

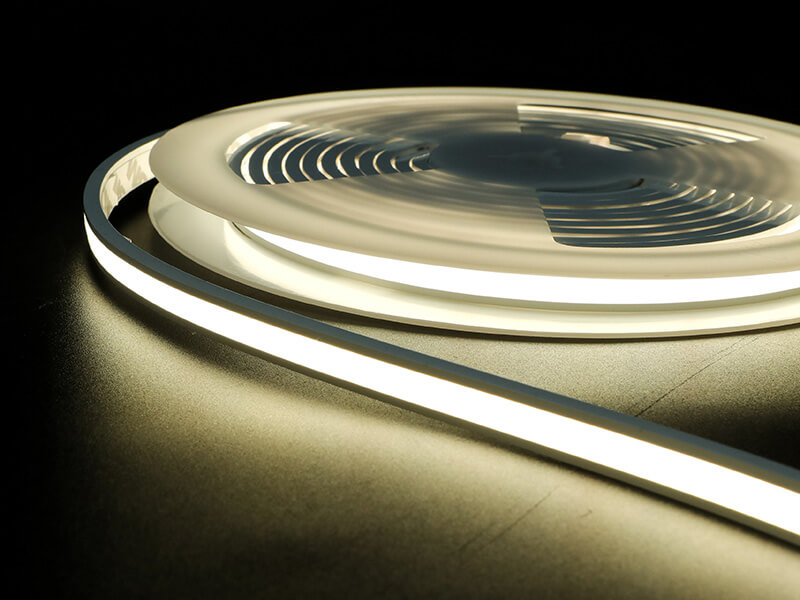

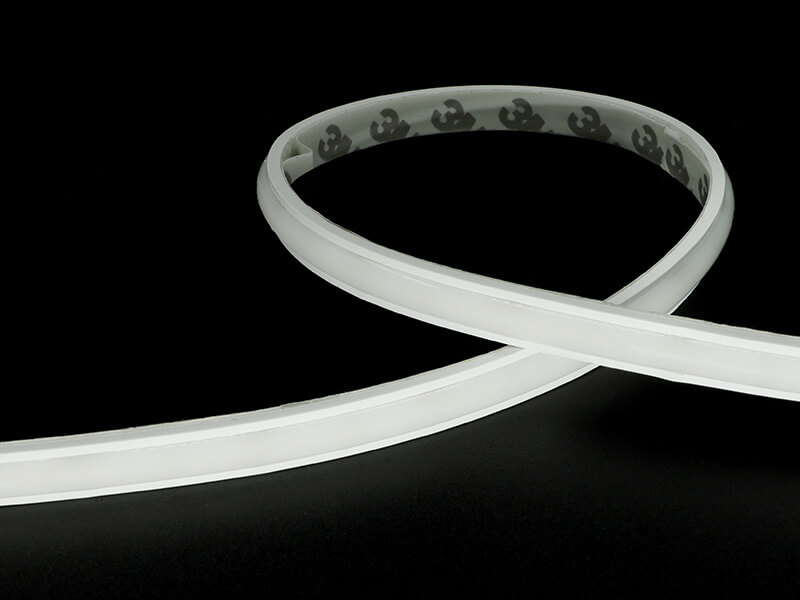

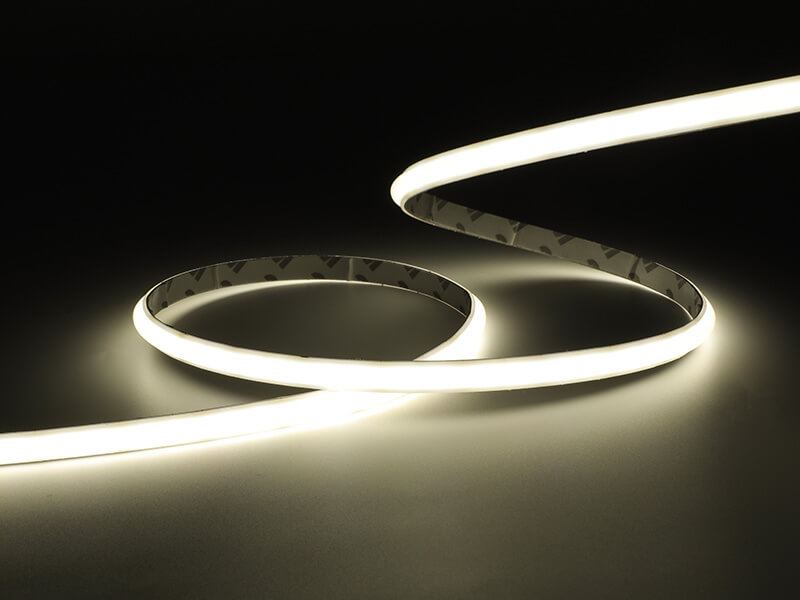

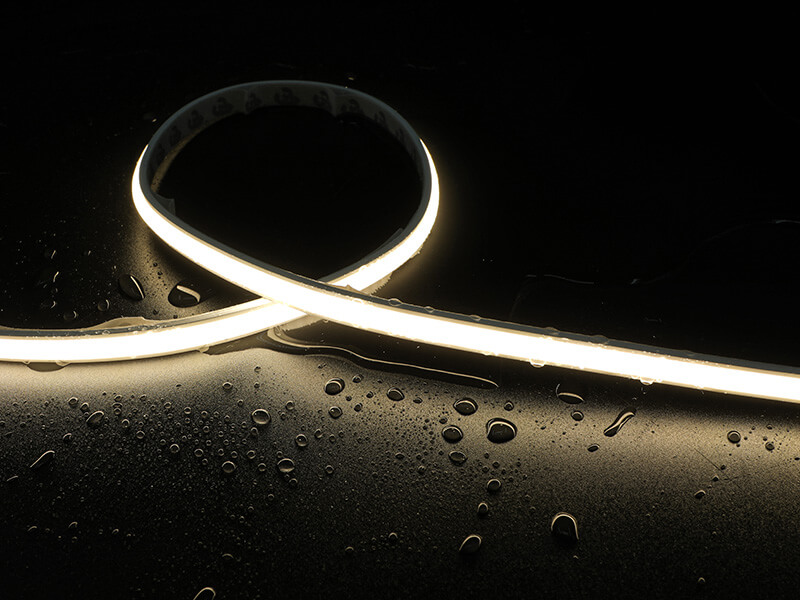

Dot-free LED lighting or spotless LED lighting, is made of high-density 2216 SMD or COB LED strips, which are then encapsulated by high-quality milky white silicone. Its waterproof level is optional for IP62 and IP67.

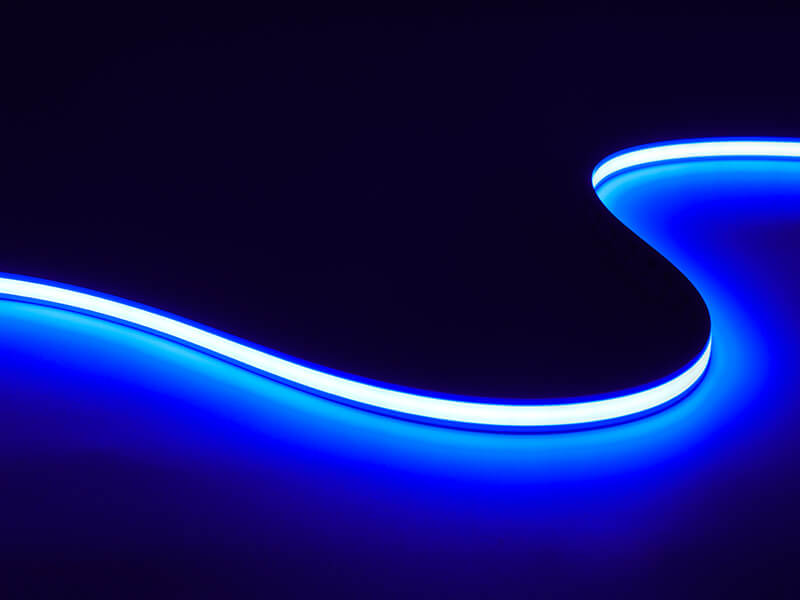

In terms of appearance, dot-free LED strip lights are similar to mini neon lights, around 10x05mm, but slimmer and shinier than neon lights, and can be better applied in scenes of various extreme sizes.

  1. The minimal installation width is only 4mm.
  2. Lighting products for special occasions, such as curved counters, and convex, or concave surfaces.

Myledy has developed 2 LED strip lights with different CRI levers for selection:

Item: LD-SP0845-300S24-12P2-W

  • LED Qty: 300 LEDs/M
  • Strip size: 8×4.5 mm
  • Power: 12 W/M
  • Lumen: 880-980 LM/M
  • Voltage: 24V DC
  • SMD type: 2216
  • Color: 2400K – 6500K
  • >90CRI
  • Cutting interval: Free cutting
  • Waterproof: IP62/IP67

Item: LD-SP0845-288S24-12P2-W

  • LED Qty: 288 LEDs/M
  • Strip size: 8×4.5 mm
  • Power: 12 W/M
  • Lumen: 1290-1390 LM/M
  • Voltage: 24V DC
  • SMD type: 2216
  • Color: 2400K – 6500K
  • >90CRI
  • Cutting interval: 27.77mm
  • Waterproof: IP62/IP67

Item: LD-2216-24-300S10-12P7-W

  • LED Qty: 300 LEDs/M
  • Strip size: 10 x 5 mm
  • Power: 12 W/M
  • Lumen: 760-900 LM/M
  • Voltage: 24V DC
  • Color: 2400K – 6500K
  • >90CRI
  • Cutting interval: Free cutting
  • Waterproof: IP67

Item: LD-2216-24-288S10-12P7-W

  • LED Qty: 288 LEDs/M
  • Strip size: 10 x 5 mm
  • Power: 12 W/M
  • Lumen: 1200-1300 LM/M
  • Voltage: 24V DC
  • Color: 2400K – 6500K
  • >90CRI
  • Cutting interval: 27.77mm
  • Waterproof: IP67

Item: LD-2216-24-300S10-12P7-W

  • LED Qty: 300 LEDs/M
  • Strip size: 10 x 5 mm
  • Power: 12 W/M
  • Lumen: 760-900 LM/M
  • Voltage: 24V DC
  • Color: 2400K – 6500K
  • >90CRI
  • Cutting interval: Free cutting
  • Waterproof: IP67

Item: LD-2216-24-288S10-12P7-W

  • LED Qty: 288 LEDs/M
  • Strip size: 10 x 5 mm
  • Power: 12 W/M
  • Lumen: 1200-1300 LM/M
  • Voltage: 24V DC
  • Color: 2400K – 6500K
  • >90CRI
  • Cutting interval: 27.77mm
  • Waterproof: IP67

Myledy IP Grade Introduction:

IP is an acronym “Ingress Protection”, a measurement standard ratings used to indicate the level of protection for electrical equipment against solids and liquids.

Myledy is equipped with state of the art manufacturing equipment utilizing cutting edge technology and top quality silicone glue to offer anti-yellowing, resistance to high and low temperature and diverse IP rating lever IP62~IP68 waterproofing for special applications.

IP20
Non-Waterproof

IP20 without waterproof

IP62
Silicon Glue

IP62 silicon glue

IP65
Silicon Sleeve

IP65 silicon sleeve

IP66
Silicon Extrusion

IP67
Silicon Glue with
Half Sleeve

IP68
Silicon Glue With
Full Sleeve

IP68 Silicon glue+silicon case

Regular Wiring Method:

First, Calculate The Wattage of Each LED Strip — You should already have an idea of how much power will be required to run your LED light tapes. However, there might be some additions or subtractions in the number after you’ve cut and connected the tapes together. So, calculate the overall wattage required to power your flexible LED light strips again.

Second, Find Compatible Power Supply — You need to choose a driver that will use only 80% of its overall power to run the LED tapes. This is very important for the longevity of both your power supply and LED strips.

Third, Connect LED Strip to Power Supply — You can make series circuit or parallel circuit for the LED strip lights. And all Myledy LED strip lights are dimmable, you can also connect a dimmer for better brightness control.

With A Dimmer
LED Strips Parallel Circuit
