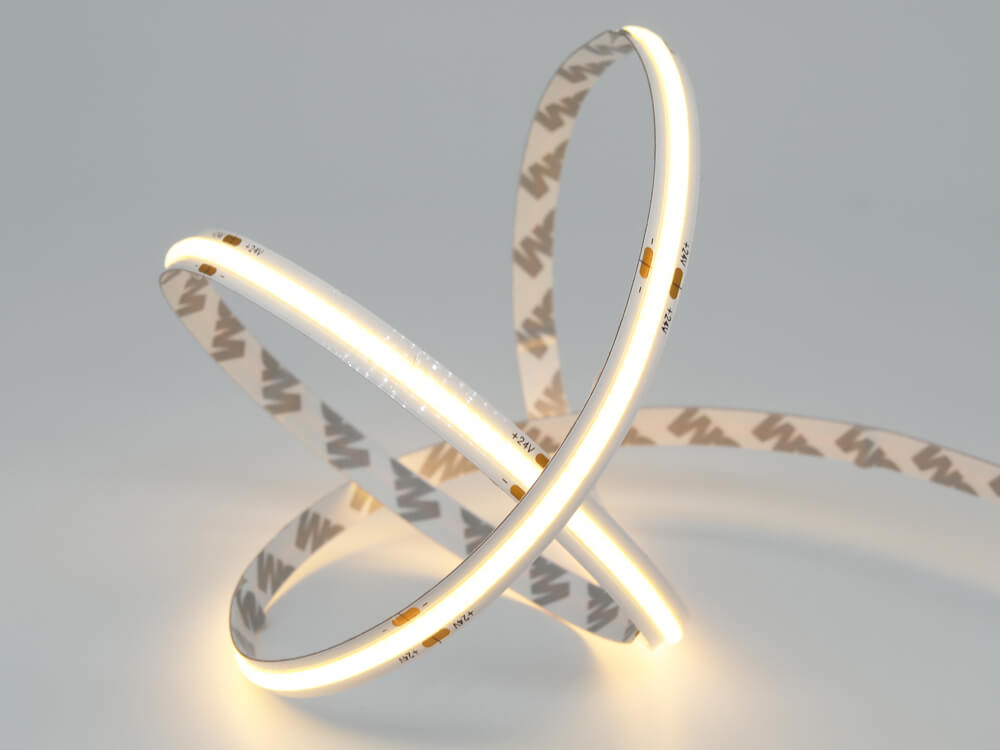

COB LED Strip Light

  • High Density, Highlight, Dot-free

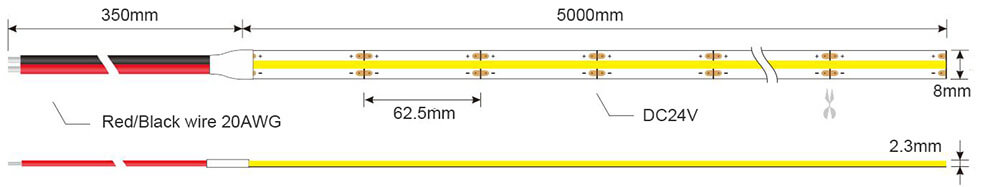

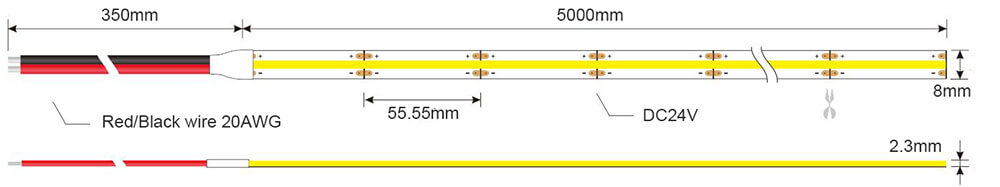

  • 378/ 512 Chips/M Optional
  • 180° Bean Angle
  • >90 CRI
  • CCT: 2400K~6000K
  • Up to 30000hours Lifespan

Category : Tags :

3 SDCM 5 YEARS WARRANTY DIMMABLE RoHS CERTIFICATE UL CERTIFICATE CE CERTIFICATE LM80 TEST TUV ONE BIN ONLY

Specifications:

One of the most popular LED lights today, COB LED strips, offers you both style and convenience. But what are COB LED strips, and what to look for when buying one? Is COB LED strip a better option than other popular LED products? Let’s explore all these answers here.

1. know about COB LED strip light

What's COB?

hip-on-Board or “COB” refers to the mounting of a bare LED chip in direct contact with a substrate (such as silicon carbide or sapphire) to produce LED arrays.

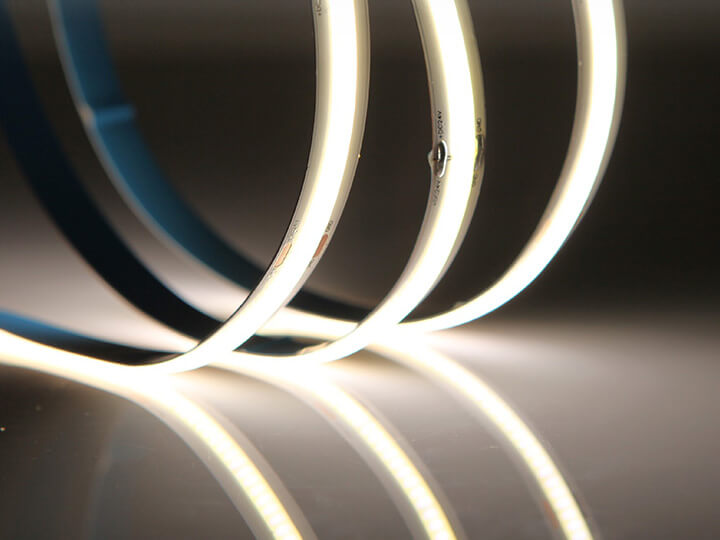

What's COB LED Strip Light?

The construction of COB LED strips is different from that of the regular SMD LED strip. SMD LEDs are soldered to the packaging strip. COB LEDs are lined onto the PCB and then covered using translucent material.

Due to this translucent material, COB LED strip light will provide a continuous ray of light. This makes COB LED different from SMD strips. Not only is there more light intensity, but it also gives off a nice effect, making the LEDs stand out.

How Long Can a COB LED Strip Using?

LED strip COB has a lifespan similar to SMD LED strips. They can last for around 50,000 hours. Even though the initial investment is a bit high, these lights last you a long period.

Also, LED COB strip light consumes less energy, so not only will your light last for at least 4 to 5 years, but you’re also saving on electricity costs.

What Colors are Available for COB LED Strips?

Similar to SMD strips, COB strips are also available in various colors. You’ll find COB LEDs in the following color options:

Cob Led Strip Color Available

What is IP Grade Available for COB LED Strips?

For COB LED strips, you’ll find the following IP grades available:

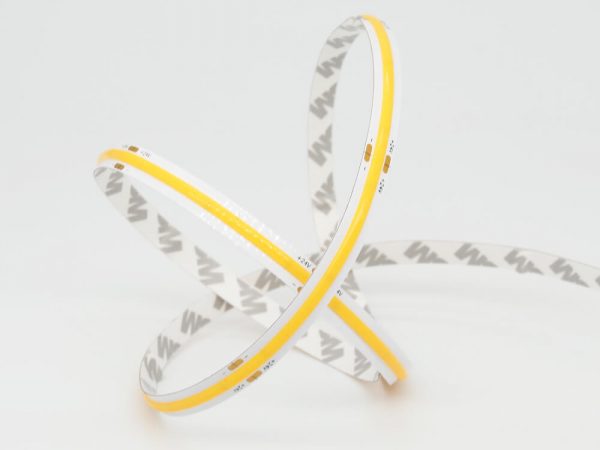

  • IP20 – This is best for indoor use as not waterproof at all. You can set up these in your cabinet, bedroom, or living room.

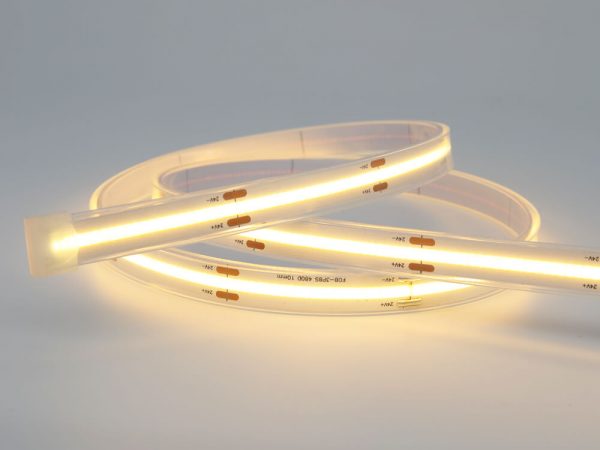

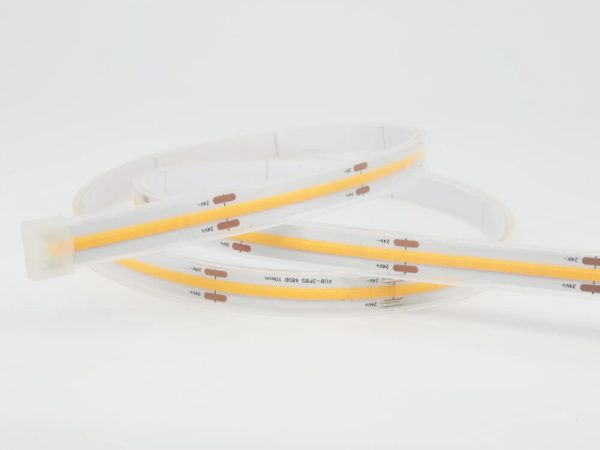

  • IP65 – This COB LED strip has a silicone sleeve and is perfect for outdoors. They can handle low water pressure, so you can also use them in damp areas as long as you don’t submerge them into the water.

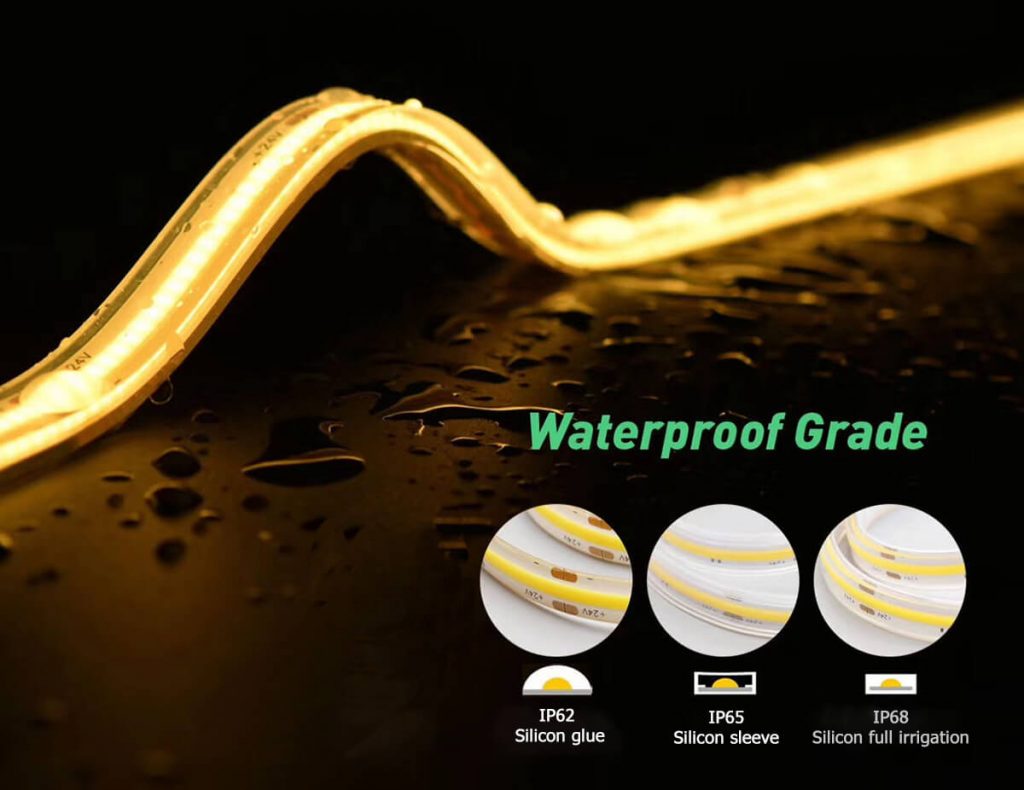

Cob Led Strip Waterproof Grade

2. Using of COB LED strip

What's the Application of COB LED Strips?

As mentioned earlier, one of the best things about COB LED strips is that it creates a smooth, seamless beam of light. You won’t see any visible spots, making it perfect for using on reflective surfaces like granite countertops and tiled floors.

LED cob strip lights with aluminum frofile

Moreover, this feature allows you to use these light strips for narrow places. So, you can light up your jewelry box or use these lights for backlighting.

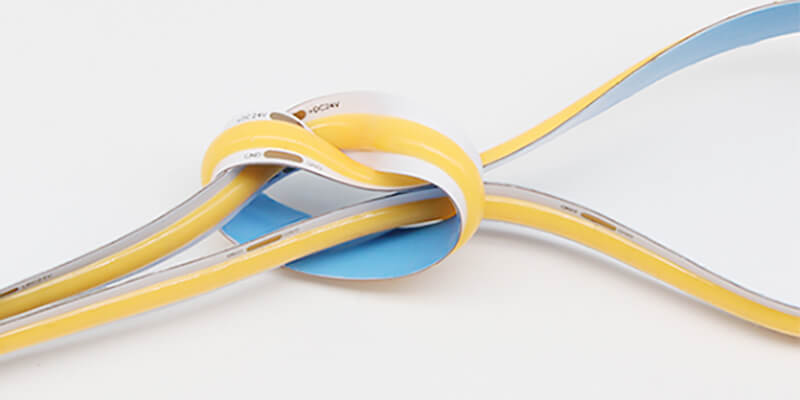

Besides, as chip-on-board technology not only provides high-quality lighting, It also prevents heat from building up, which gives the LED strip more flexibility.

Widely application of LED COB Strip light:

Application Of Led Cob Strip Light 1

Which One to Choose? COB Strip vs SMD Strip

COB LED strip light uses chip-on-board technology. It’s an encapsulation of the chip packaged onto a flexible PCB board. One of the most common LED lights you’ll find in the market is the SMD LEDs. For these LEDs, the chip is permanently embedded onto the printed circuit board.
  • COB LED Strip light is Dot Free – The structural characteristics of COB LED strips to give it more beneficial in comparison to SMD LEDs. Unlike the luminous bed structure of SMD strips, the surface from which the light is emitted in COB is a linear colloid, resulting in a more uniform of light. As COB chips are directed embedded on to the PCB board, heat transfers from the chip to the board pretty quickly.
  • Wider Lighting Angle – The COB strip’s 180° illumination angle is larger than the 120° angle of SMD light strips. Simply put, a better aesthetic and better lighting.

Does COB LED Strips Need a LED profile for Heat Dissipation?

Like all LED strip lights, it’s best to get a LED profile for your COB LED strips. High-power LEDs must remove heat using thermal management. Without proper management, you might end up damaging your LEDs.

The aluminum extrusions provide a path for the heat to travel from the COB LED to the external environment.

Before you select a heat sink for your COB LED strip, be sure to consider how the following impact the heating and cooling processes:

  • Wattage
  • Surrounding temperature
  • If your LEDs have adhered in a closed or open space

3. Why choose Myledy COB LED strip?

Our Top Quality COB Light Is Based on Each Detail

COB LED strip light detail 3

brand chip

We use Epistar chip for our COB LED strip light, high brightness, no light spot, high color rendering, low light decay, durable.

Top FPC

We use double-sided electrolytic copper PCB, with gold-plated process, excellent flexibility, oxidation resistance and high temperature resistance.

COB LED strip light 1

top-grade silicon gel

Our COB LED light is packaged with top-grade silicon gel, which with high light transmittance that can provide better protection and softer light.

Excellent color consistency

Same as Myledy other LED strip lights, our LED COB light will maintain our consistent of excellent color consistency,that can get up to 3 SDCM.

For your “done-and-forget” LED lighting projects

What
We can do
for you?

Free Samples

Myledy can provide Free samples of LED strip for customers to better decide what products are needed for his projects.

LOGO Printing

Customized LOGO, date, batch number etc. can be printed on LED strip PCB.

Special Accessories

Relevant cables, connectors, LED profiles, power and other special accessories are available for your projects.

Customized Length & Color

Myledy is proficient in color consistency of led strip lights, we keep one bin and make customized length of LED tape for your projects.

Certificates & Testing Reports

Myledy LED Strip lights have CE, UL, RoHS certificates, and we can profile LM80, IES, Integrating sphere test reports

Prompt Delivery & Economic Freight

7~8 days for regular IP20 LED Strip; 15 days for IP62~IP65 LED tapes. Shipment by sea or air is based on your requirement.
